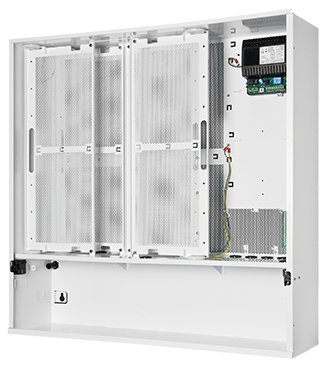

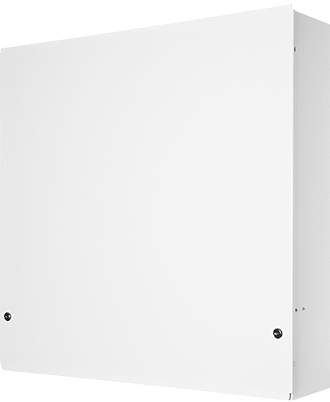

MULTI-ACCESS-PSU12 ^New!

Enterprise Access Control Enclosure

Scalable Power for Large-Scale Security Systems

Engineered for demanding access control applications, the Elmdene MULTI-ACCESS-PSU12 is a high-capacity, secure power enclosure designed to support up to 24 access control modules. Ideal for large sites like data centres, airports, transport infrastructure, and medical facilities, this solution enables centralised power management for complex security systems.

Customisable Power Configurations

The MULTI-ACCESS-PSU12 supports both 12V and 24V outputs simultaneously, reducing installation complexity and eliminating the need for multiple enclosures. It accommodates up to three power supply modules and multiple fused output modules, offering safe and scalable power distribution to controllers, locks, and associated devices.

Universal Mesh Backplate Design

Built on Elmdene’s unique Universal Mesh Backplate system, the enclosure delivers unmatched installation flexibility while improving airflow and thermal performance. Whether you’re upgrading infrastructure or installing new systems, this smart design simplifies integration and maintains optimal efficiency in critical environments.

Built for High-Security Applications

With features like front and rear tampers, dedicated battery compartments, and robust cable management, the MULTI-ACCESS-PSU12 meets the demands of high-security environments where reliability and scalability are critical.

Key Features

• Supports up to 12 large or 24 small controllers
• Compatible with both 12V and 24V power sources
• Fits up to 3 power supply modules
• Universal mesh backplate for flexible mounting and improved airflow
• Integrated front and rear tamper protection
• Separate battery compartment: holds 3 x 12V 38Ah or 6 x 12V 17Ah
• Wall-mountable with hinged universal panels
• Extensive fixing and standoff kits included
• Lifetime warranty

Applications

• Enterprise access control systems
• Data centres and critical infrastructure
• Airports and transport terminals
• Hospitals and pharmaceutical labs
• High-security government or commercial buildings

Ready to simplify and scale your access control infrastructure?
Contact Us

For more details on this product range, including part numbers, please refer to the datasheet below or contact us.
